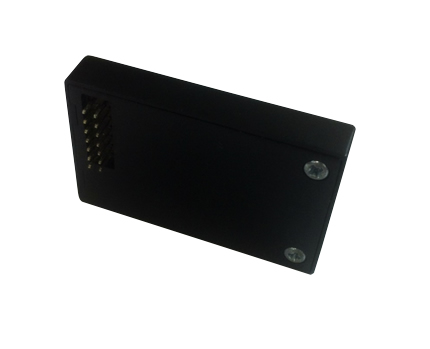

Wifi /BT module
|
|
 |
- Sunrise provides relatives APPs, and also offer the APP customize service.
|
 |
|

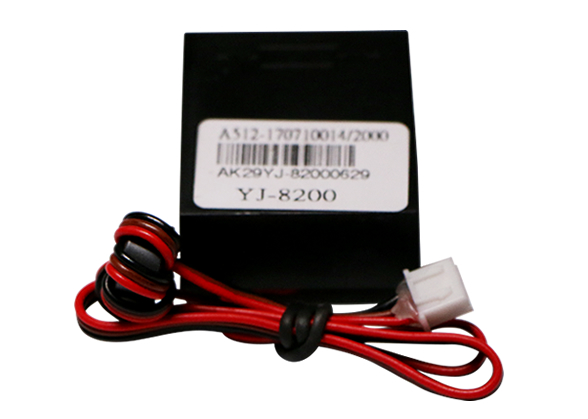

Wireless Heart Rate Receiver
|
|
- Operating voltage range: DC 5V ~ 12V.
- Receiving frequency: 5 KHz ± 10%.
- Receiver distance range: 80-100 cm.
- Good anti-interference capability.
- Compatible with polar receiver's receive frequency.
|
|

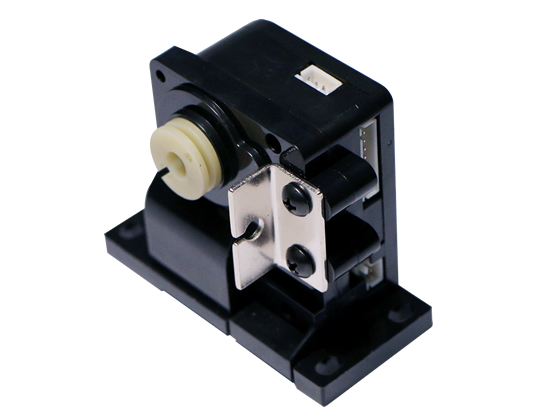

Motor Gear
|
|
- Operating voltage range: DC 5V ~ 12V
- Direction: CW / CCW
- Loading: 10KG
- Stroke range: 10~24mm.
- Life: at least 15,000 times (min) (min round trip travel to the maximum for the time).
|
|

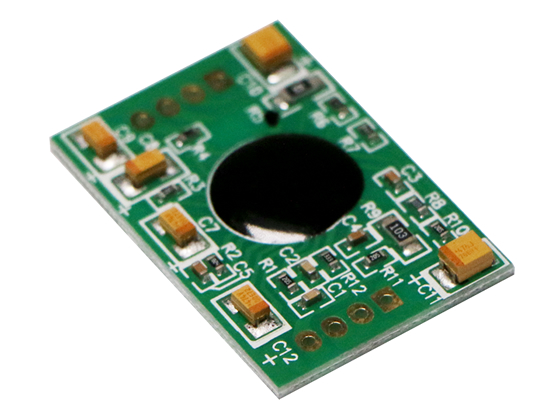

Head Pulse Board
|
|
- Operating voltage range: DC 2.6V ~ 5.5V.
- A good anti-interference capability.
- Detection signal output stability.
- ESD (ESD) protection ± 6KV above (contact).
- Integrated technology (ASIC) circuit design for sports equipment.
- Electric treadmill with heart rate and other hand detection.
|
|
Heart Rate Ear Phones
|
|
- Suitable for treadmill and fitness bike.
|
|
Hear Rate Ear Clamps
|
|
- Suitable normal MP3, fitness equipment including MP3 and heart rated output.
|
|
Hall Sensor
|
|
- Electrical characteristics:
|
(T=+25℃, Vcc=2.4V to 26V) |
Characteristic
|
Symbol |
Tet conditions |
Min |
Typ |
Max |
Units |
| Supply voltage |
Vcc |
-- |
2.4 |
-- |
26 |
V |
Output saturation
voltage |
Vout(sat)
|
Vcc=12V, Ic=10mA
B>Bop |
-- |
0.2 |
0.6 |
V |
Output leakage
current |
Ileakage |
Vcc=12V. B<Brp |
-- |
<0.1 |
10 |
uA |
| Supply current |
Is(off) |
Vcc=12V.output open |
-- |
3.0 |
6 |
mA |
|
|
|
